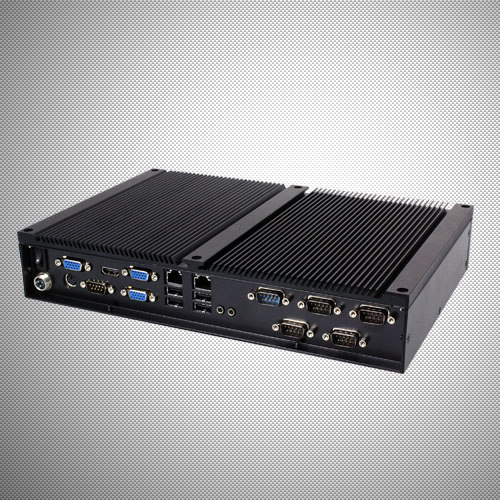

Embedded PC Intel Atom dual core D525 IEC-622DH (HDMI, 3 VGA, 6COM)
| Payment Terms: |
T/T |
| Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
IEC-622DH
Production Capacity:
2000pcs/month
Delivery Date:
5-10days
Means of Transport:
Air
Packing:
cartons
Embedded PC IEC-622DH
Intel Atom dual core D525 CPU, 2GBDDR3ram, HDMI, 3 VGA, dual Intel GbE card, USB2.0, Audio,6 COM, Power adapter
| Wide temperature embedded system with independent 3-display |
- Intel Atom dual core D525 processor, 1.8GHz, 1MB L2 cache
- Two 204-pin DDR3 SO-DIMM slot, up to 4GB; Preloaded 2GB DDR3 memory
- Built-in Nvidia ION high performance graphic chip, with 512MB display memory, including HDMI and three VGA interface, supports independent three-display mode
- Two Intel GbE controllers
- Supports Line out, MIC interface, built-in 2x6W amplifier
- Supports USB2.0, 6 COM, SATA, CF
- DC 12V input, 3-Pin connector, optional 9~28V wide voltage input
|
| Color | Black |
| Dimensions(DxWxH) | 200x300x75mm |
| Material | Aluminum extrusion cover, sheet metal chassis |
| Platform | Intel Pineview-D Platform |
| CPU | Intel Atom 45nm dual core D525 1.8GHz processor, 1MB L2 cache |
| Chipset | Intel ICH8M |
| BIOS | SPI FLASH BIOS |
| System memory | Two 204pin DDR3 SO-DIMM slots, up to 4GB; Preloaded 2GB DDR3 memory |
Interface
| Three SATA interface, one IDE interface, one CF slot |
| HDD | Supports one 2.5" HDD bay, one SATA power connector; Supports SATA/IDE DOM |
| CF slot | One CF slot, supports master/slave setting |
| Ethernet | Dual Intel PCIe GbE controller
Two 10/100/1000Mbps RJ-45 LAN ports |
| USB | Four USB2.0 |
| Display | Three DB-15 VGA display ports, One from Intel D525, the other from Nvidia GPU, resolution up to 2048x1536;
One HDMI interface from Nvidia GPU, supports 1080p;
Supports independent three-dispay mode; |
| RS232 COM | Four RS-232 |
| RS232/422/485 COM | Optional two RS-232/422/485; Default RS-232 |
| Audio | One Line out, one MIC interface, built-in 2x6W amplifier |
| Keyboard/Mouse | One PS/2 Keyboard/mouse interace |
| Indicator | One power LED, One HDD LED |
| WDT | Software programmable supports 1~255 sec system reset |
| Expansion | One Mini PCIe slot, for WiFi module |
DC in & power connector
| Single 12V input, 3Pin power connector, Optional 9~28V wide voltage input |
Power consumption
| 12V/3.2A (Intel® D525 1.8GHz/DDR3 2GB) |
| Power adapter | 120W DC power adapter, 100 ~ 240V AC input, DC 12V output |
| Mounting | Supports wall-mounting or desktop-mounting |
Operate temperature
| -20°C ~ 50°C (With SATA HDD or WiFi module);
-20°C ~ 70°C (With SATA SSD/ CF card) |
Storage temperature
| -20°C ~ 75°C |
IP level
| Front panel IP64 |
| Operate humidity | 5% ~ 85% non-condensing @ 40°C |
| Storage humidity | 5% ~ 95% non-condensing |
| Shock | Half sine wave 3G; 11ms 3axis |
| Vibration | MIL-STD-810F 514.5C-1 (With SATA HDD); MIL-STD-810F 514.5C-2 (With SATA SSD/CF) |
| Weight | 4.2 Kg |
| Model No. | Descriptions |
| IEC-622DH | Wide temperature embedded system with independent three-display, Intel Atom dual core D525 CPU, 2GB DDR3 ram,160GB SATA HDD, HDMI, 3 VGA, Dual Intel GbE card, USB2.0, Audio, 6 COM, power adapter |
| IEC-622DHL | Wide temperature embedded system with independent three-display, Intel Atom dual core D525 CPU, 2GB DDR3 ram,160GB SATA HDD, HDMI, 3 VGA, Dual Intel GbE card, USB2.0, Audio, 6 COM, 9~28V input |
| IEC-622DHW | Wide temperature embedded system with independent three-display, Intel Atom dual core D525 CPU, 2GB DDR3 ram,160GB SATA HDD, HDMI, 3 VGA, Dual Intel GbE card, USB2.0, Audio, 6 COM, WiFi module, power adapter |
